Vacuum

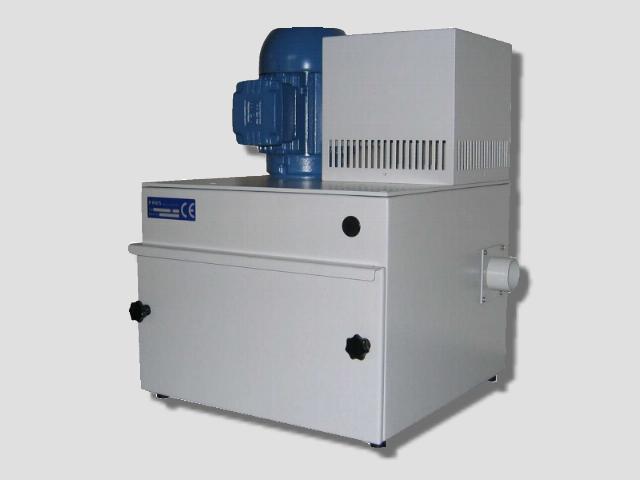

Type 2000 A2
Robust industrial vacuum unit for 7x24 h ongoing operations
Compact
Small size allows for an easy integration
into machines & production facilities.
24-h Ongoing Operations
Wear + tear free 3-phase electrical mo-tor, low maintenance & running costs.
Broad Range of Applications
The cartridge filter with the optional
filter flushing system allows for a broad
range of applications for vacuuming
many different dusts, wastes, particles,
etc. from an industrial process.
Modular / Tailor made to your needs
Type A2 is available in many different
power and configuration options, which
makes it an all-rounder for many industry
segments and applications. Please give us
a call if you would like to know more.
Technical Data
|
Motor |
3 x 220 - 240 / 380 - 415V 50 Hz
1,1 kW 2,3 A (UL) IP 55 IE2 |
|
Volume flow rate |
267 m3/h |
|
Vacuum |
200 mbar |
|
Noise level |
70 dB[A] |
|
Waste container size |
8 Liters |
|
Filter, Area, Quality |
Cartridge filter 0.6 – 1.4 m2, BGIA
M (C) antistatic |
|
Filter flushing system |
optional |
|
Color |
RAL 7035 powder coated, antistatic |
|
Housing / Size |
Stable Steel Construction / W400 x D430
x H550 mm |
Options
Hose / pipe connection Ø30, 32, 40,
50, 60 mm
Motor protection unit
Manual filter flushing system
Automatic filter flushing system (timer)
Available in stainless steel (V2A) or other RAL colors
High efficiency HEPA & activated charcoal filters
220 – 240 V and other country specific voltages
Many further options available on demand
|
