Ohio (Gravostar) M820 Engraver

Ohio M820 Engraver

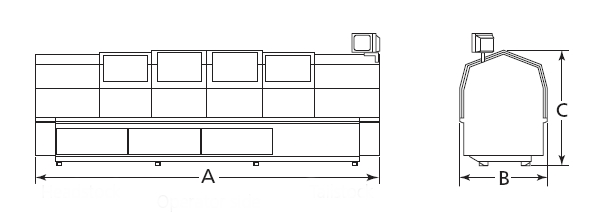

Machine Dimensions

Type

A

B

C

Weight

Gravostar (Ohio) 820 -1415

3500 mm

1220 mm

1537 mm

4400 Kg

Gravostar (Ohio) 820 -2215

4750 mm

1220 mm

1537 mm

5450 Kg

Gravostar (Ohio) 820 -2226

5500 mm

1372 mm

1791 mm

6330 Kg

Screen Range : 40 l/cm to 200 l/cm

Screen Angels 30 - 60 in 0,01 increments

Standard Engraving Head :

Depth (maximum) 55 microns

Cutting speed 4500 Hz.

Extended range engraving head

Depth (maximum) 70 microns

Cutting speed 3200 Hz.

High-swing engraving head

Depth (maximum) 100 microns

Cutting speed 2800 Hz.
