Ohio (Gravostar) B710 Engraver
Ohio B710 Engraver

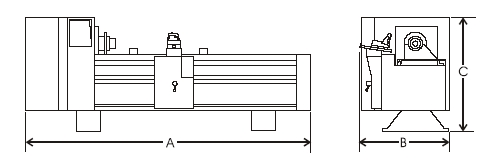

Dimensions
|
"A" Width |
"B" Depth |
"C" Height |
Weight |
|
B710P -136 |
3,54 m (138") |
1,08 m (42") |
1,41 m (55") |
3300 Kg (7275 lbs) |
|
B710P -148 |
3,84 m (150") |
1,08 m (42") |
1,41 m (55") |
3591 Kg (7915 lbs) |
|
B710P -187 |
4,84 m (189") |
1,08 m (42") |
1,41 m (55") |
4537 Kg (10000 lbs) |
|
B710P -220 |
5,69 m (222") |
1,08 m (42") |
1,41 m (55") |
5338 Kg (11765 lbs) |
|
B710P -303 |
7,81 m (305") |
1,08 m (42") |
1,41 m (55") |
7352 Kg (16205 lbs) |
|
Power Cabinet |
0,66 m (26") |
0,69 m (27") |
1,6 m (63") |
137 Kg (300 lbs) |
|
Vacuum Cabinet |
0,76 m (30") |
0,46 m (18") |
0,84 m (33") |
127 Kg (280 lbs) |
|
Scanner B710P |
3,38 m (132") |
1,22 m (132") |
1,41 m (55") |
3267 Kg (7200 lbs) |
Technical Specifications
------------------------------------------------
Cylinder Circumferences :
Minimum 239 mm Maximum 1674 mm (9,4
to 65,9 in)
------------------------------------------------
Cylinder Lenghts and Weights
|
Max Shafted Cylinder |
Max Coned Cylinder |
|
Machine Size |
Length (mm) |
Weight (KG) |
Length (mm) |
Weight (KG) |
|
136 |
2337 |
2727 |
1220 |
455 |
|
148 |
2692 |
2727 |
1525 |
455 |
|
187 |
3632 |
2727 |
2515 |
455 |
|
220 |
4470 |
2727 |
3352 |
455 |
|
303 |
6579 |
2727 |
5461 |
455 |
Control Panels
|
710 Standard Control Panel |
710 Easy Cell Control Panel |
|
|
|
700 Series Stepper Panel
Engraving Heads
|
Head Type |
Art # |
# |
Picture |
Stylus |
Sliding Shoe |
Burrcutter |
|
Standard
3200H |
0328-01 |
8 |
|
0027-xx |
006
|
8330 |
|
Vision 1
4500Hz
|
0360-01 |
6 |
|
0027-xx |
006 |
8344 |
|
tranScribe |
0321-07 |
6 |
|
0027-xx |
006 |
8330 |
|
|
|
|
|
|
|
|
